1000W - 6000W
2500*6000mm
80m/min
Carbon steel plate, stainless steel plate, galvanized plate, aluminum alloy, etc
Heating, chemical, food, machinery, textile, printing and dyeing, feed, medicine, building materials, etc

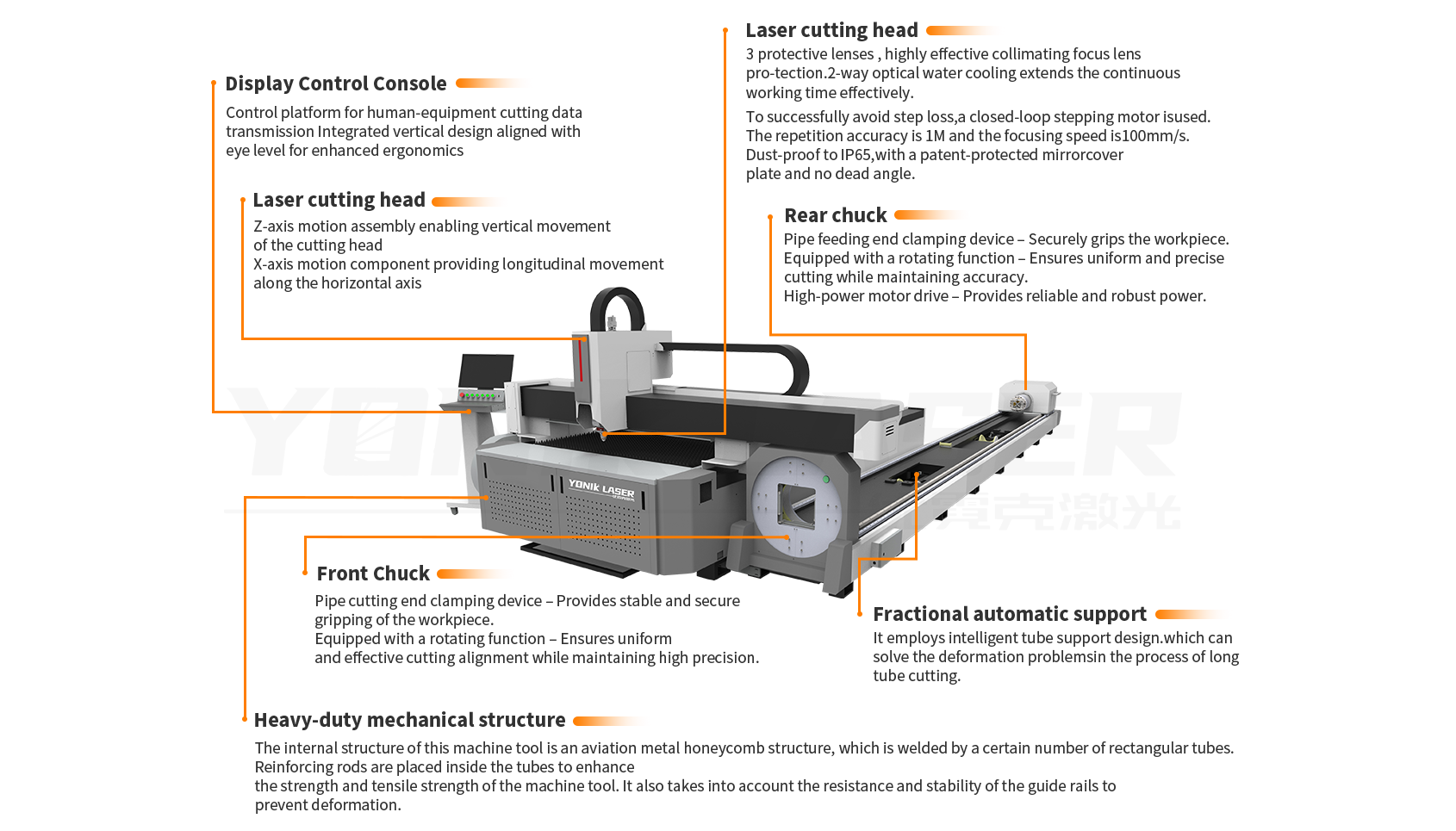

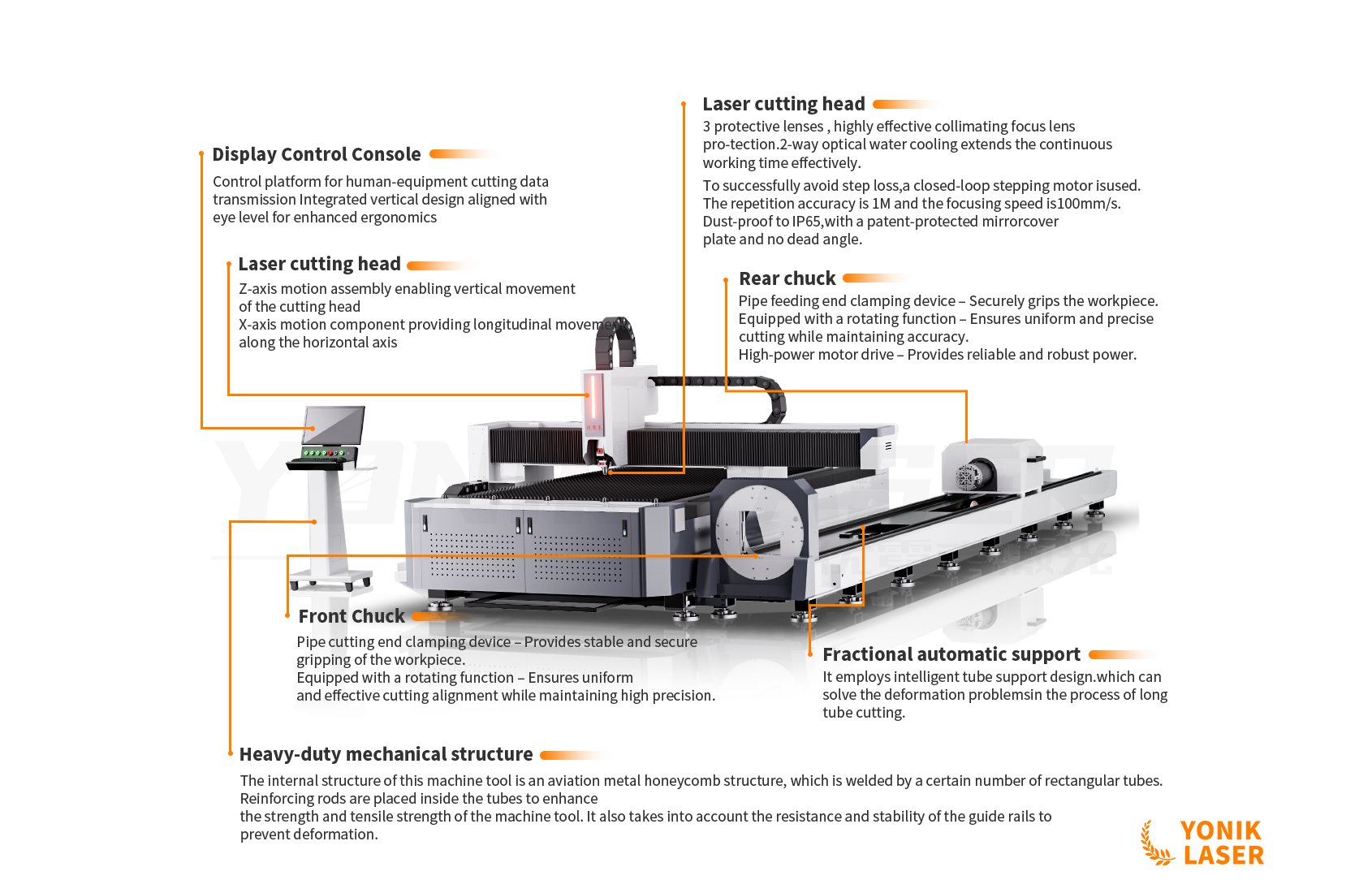

Can cut metal pipes or metal plates to meet various processing needs
Saving the purchase cost, maintenance cost, transportation cost and use space of multiple machines, significantly improving work efficiency
With double pneumatic chucks, pneumatic clamping and automatic clamping, length 3m or 6m, diameter 20-220mm
Made of solid steel bed to ensure that the machine will not deform for many years
Model: YL3015Y YL4020Y YL6025Y
Eliminating welding stress through high-temperature annealing and natural aging
High intensity workbench, easy to disassemble and replace, no hindrance to production
Real time dynamic feedback servo drive, precision gear transmission
Advanced control system for intuitive adjustment of laser power
| Model | 3015Y | 4020Y | 6025Y | ||
| Cutting range | 1500*3000mm | 2000*4000mm | 2500*6000mm | ||
| Mechanical positioning accuracy | ±0.05mm/min | ±0.05mm/min | ±0.05mm/min | ||
| Mechanical repeat positioning accuracy | ±0.03mm/min | ±0.03mm/min | ±0.03mm/min | ||
| Maximum acceleration | 1G | 1G | 1G | ||
| Maximum positioning speed | 80m/min | 80m/min | 80m/min | ||
| Auxiliary tool for processing pipe size | Equipment length ≤ 6500mm, medium 15mm ≤ circular tube diameter ≤ o 220mm. <diagonal ot rectangular and square tubes<220mm | Equipment length ≤ 6500mm, medium 15mm ≤ circular tube diameter ≤ o 220mm. <diagonal ot rectangular and square tubes<220mm | Equipment length ≤ 6500mm, medium 15mm ≤ circular tube diameter ≤ o 220mm. <diagonal ot rectangular and square tubes<220mm | ||
| Weight of a single pipe | ≤300kg | ≤300kg | ≤300kg | ||
| Laser power | 1000W-6000W | 1000W-6000W | 1000W-6000W |
* The above data is for reference only. Please refer to the actual product and product manual for specific information. Unless otherwise specified, the interpretation rights of the data involved in this website belong to YONIK Laser.
